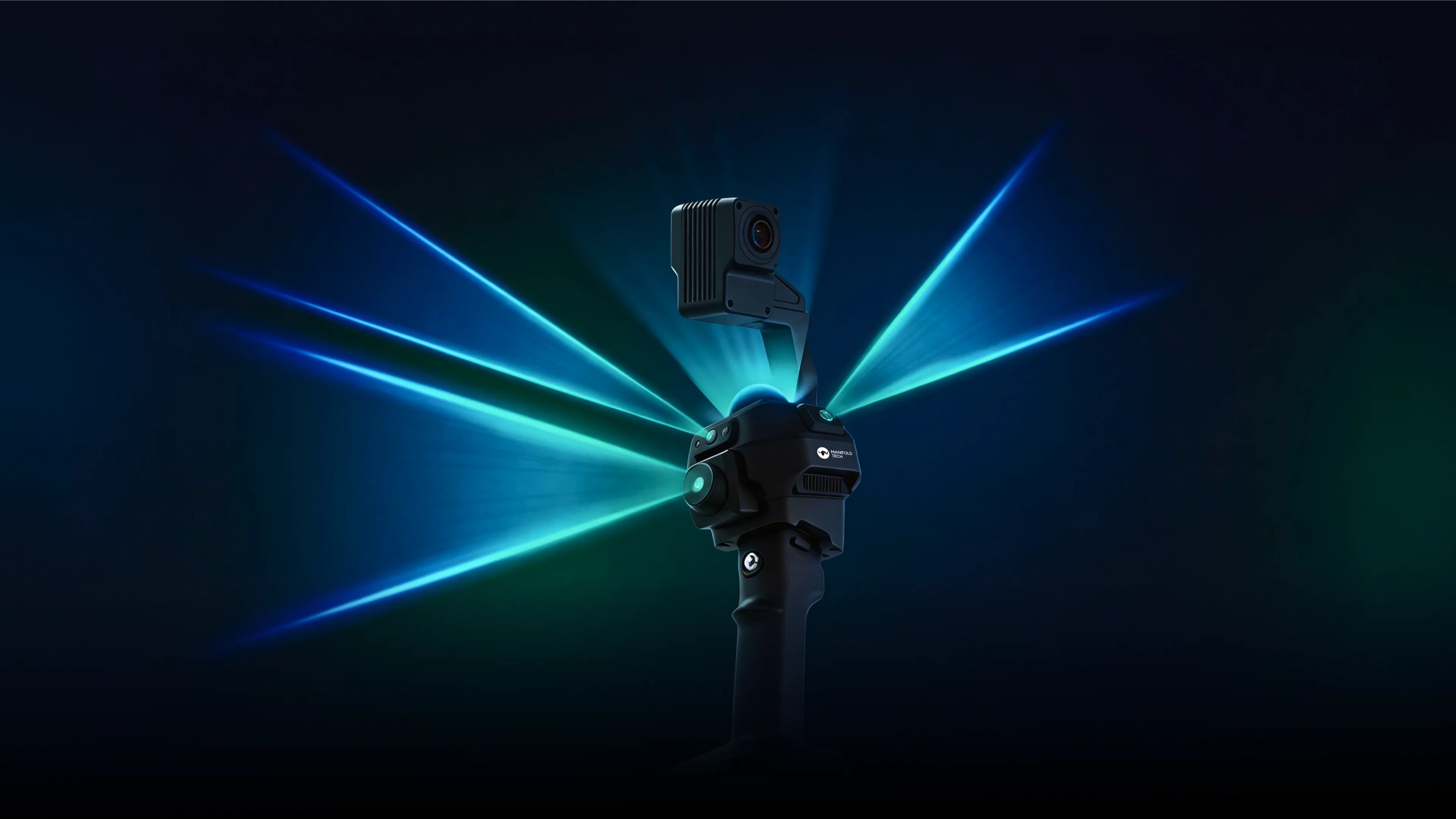

Multimodal 3D environment acquisition and processing equipment
It integrates point cloud scanning, panoramic image acquisition and detail image recording. The equipment has a built-in high-performance MindSLAM™ algorithm to achieve real-time acquisition and processing of 3D data, significantly improving on-site operation efficiency.

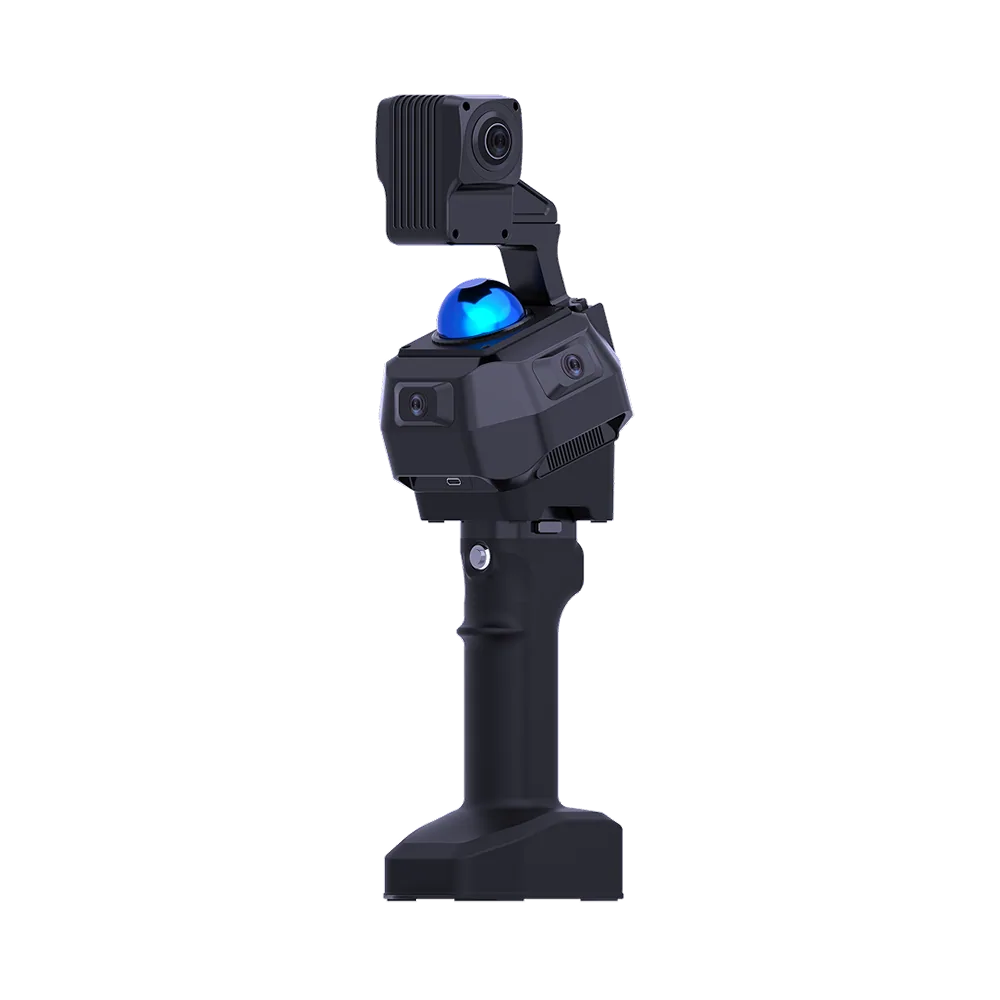

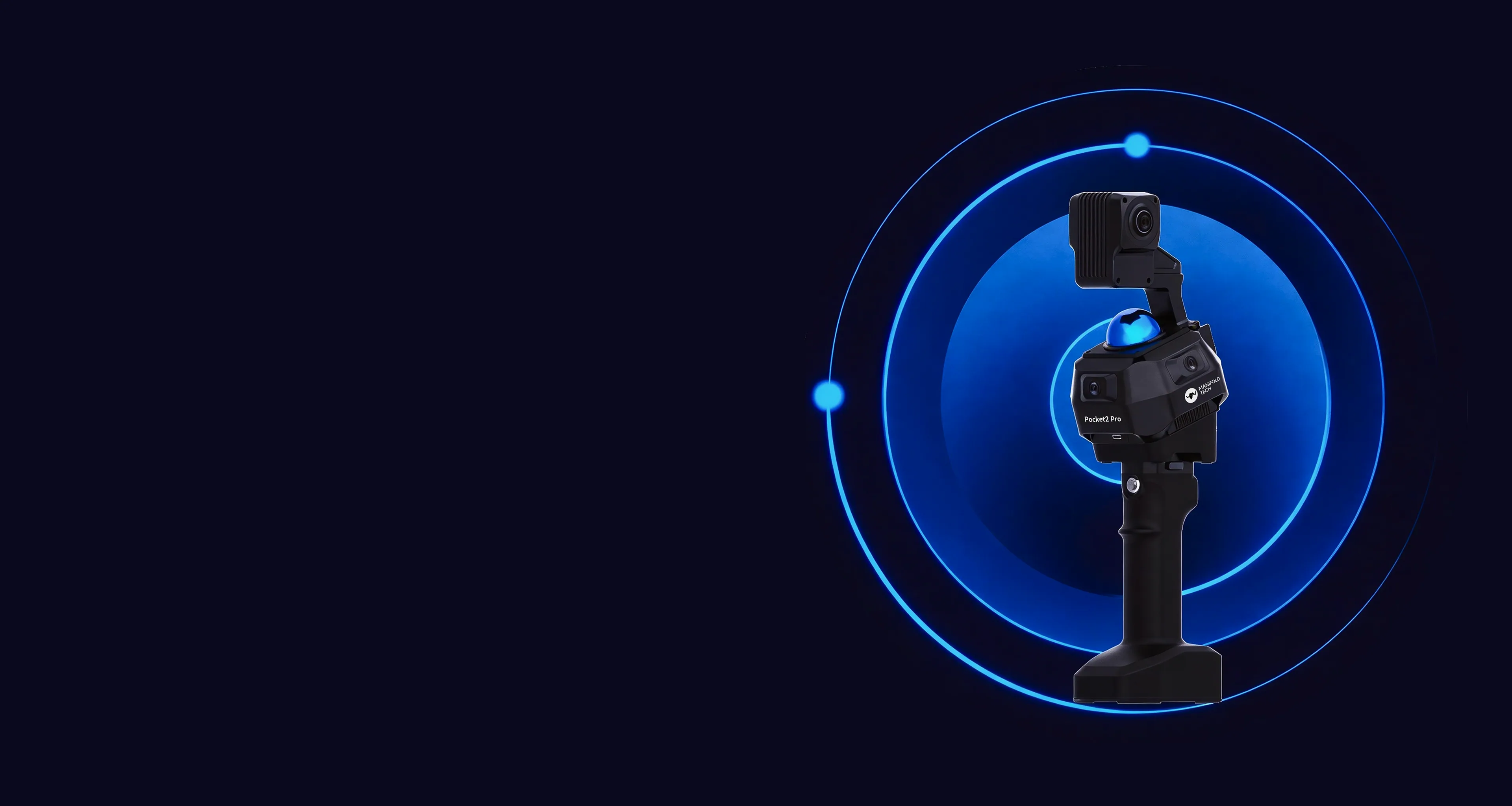

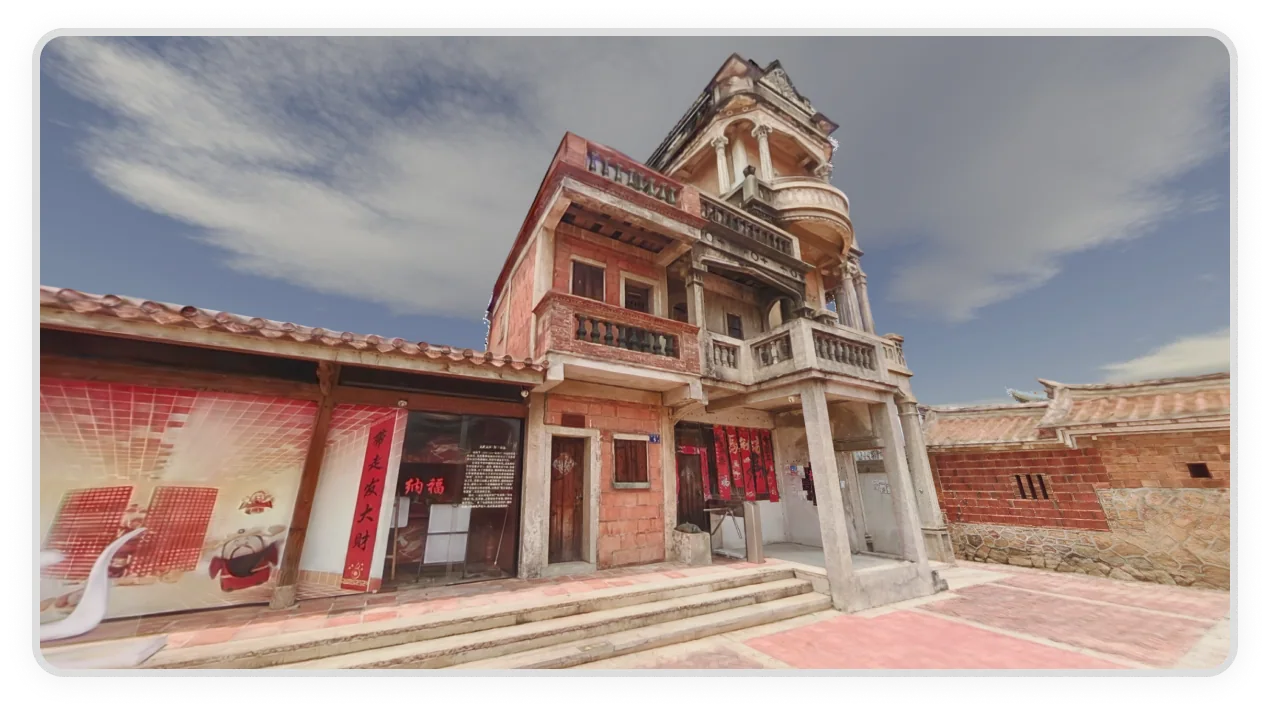

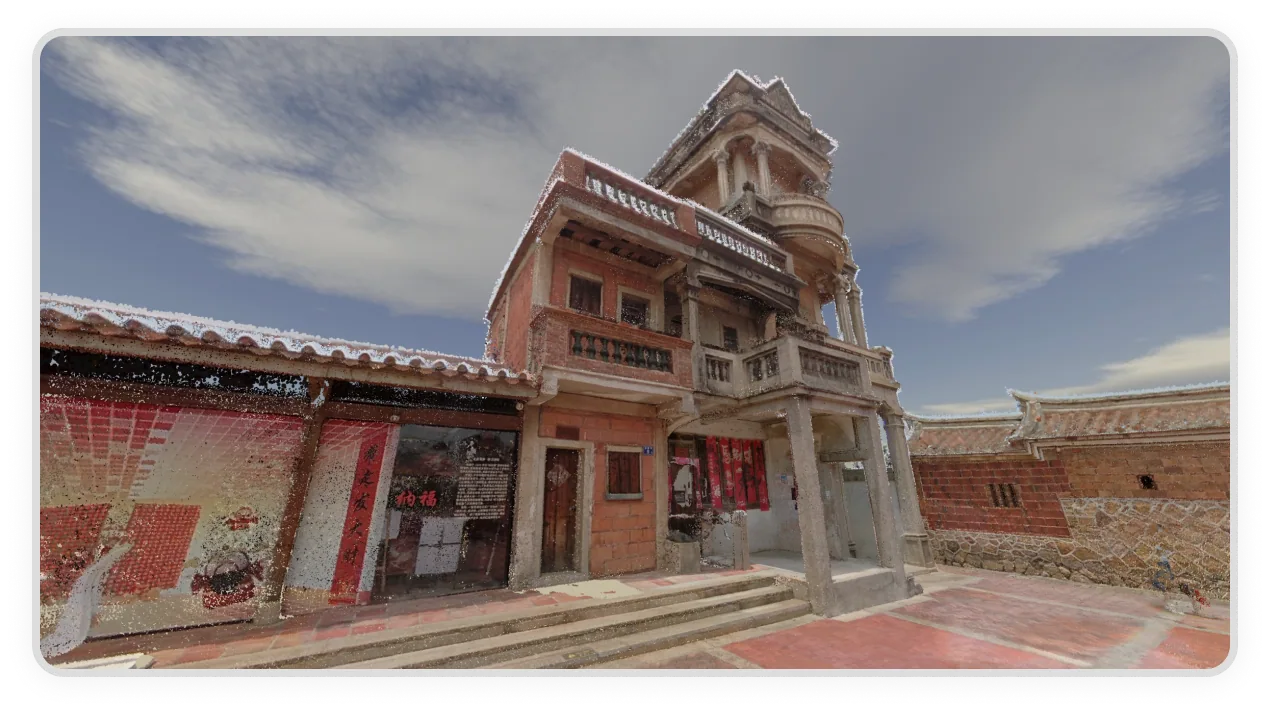

Pocket2 Pro can complete real-time acquisition and processing of multimodal data such as high-precision true-color dense point clouds, high-resolution panoramic images and videos, and detail photos at one time.
Eliminating manual steps, MindCloud delivers instant, ready-to-use data with a true WYSIWYG experience, achieving a universal, rapid, and practical closed-loop digital twin production process.
| Item | Specification |
|---|---|
| Dimensions | 4.5 × 4.5 × 8.1 in (114 × 114 × 207 mm) |
| Device Weight | 2.12 lb (962 g) |
| Handle Battery Weight | 1.05 lb (476 g) |
| Operating Temperature | 14°F to 104°F (-10°C to 40°C) |
| Data Interface | USB 3.0 |
| Storage | Built-in SSD, 1 TB |
| Battery Life (Single Battery) | Around 120 minutes |
| Point Cloud Accuracy | Better than 0.4 in (≤ 1 cm) |
| Camera Configuration | · 3 × 2 MP Global Shutter Cameras · 2 × 12 MP High-Res Top-Mounted Cameras |
| Laser Wavelength | 905 nm |
| Laser Channels | 40 channels |
| Point Density | 200,000 points/sec |
| Measurement Range | 131 ft @ 10% reflectivity / 230 ft @ 80% reflectivity (40 m / 70 m) |

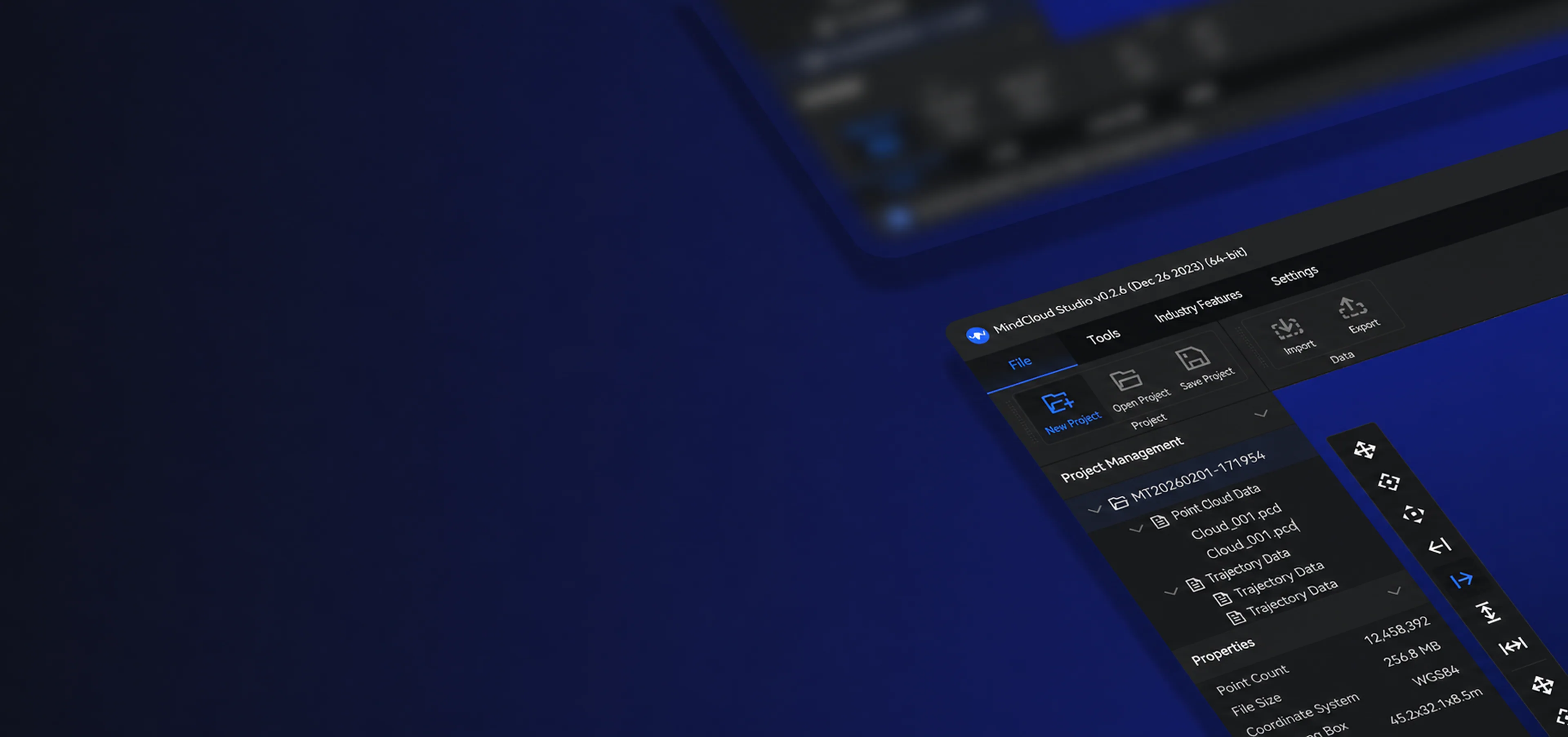

| MindCloud Software Suite | · MindCloud Studio (PC · Local Professional Processing) · MindCloud Go (Mobile · On-site Viewing & Uploading) · MindCloud Render (PC · Gaussian Rendering Software) · MindCloudX.AI (Cloud · Multi-core Computing & Deep Application Platform) |
Through the combined output of high-precision point clouds and high-resolution images, Pocket2 Pro provides high-quality model data for industrial equipment, production lines, and factory areas, supporting digital factories, virtual simulation, and remote monitoring.
In emergency scenarios such as fire, traffic accidents or criminal investigation and forensics, Pocket2 Pro can simultaneously acquire high-precision 3D point clouds and detailed images, fully record the spatial structure of the scene, the distribution of physical evidence and key traces, and quickly generate reproducible 3D models and image data.
Through the combined output of high-precision point clouds and high-resolution images, Pocket2 Pro provides high-quality model data for industrial equipment, production lines, and factory areas, supporting digital factories, virtual simulation, and remote monitoring.
